Do Dog Knee Braces Really Work? The Surprising Science Behind Stifle Orthoses

When a dog tears their Cranial Cruciate Ligament (CCL)—the canine equivalent of an ACL tear in humans—owners face a tough decision. Surgery (like a TPLO or Extracapsular Repair) is widely considered the gold standard, but for various reasons—such as financial constraints, high surgical risk, or underlying health issues—many owners turn to custom knee braces (stifle orthoses) as a non-invasive alternative.

Custom braces like the Hero Knee Brace promise to support an unstable knee, reduce pain, and restore mobility. On the surface, the standard expectation is that a rigid brace works like a tight clamp, locking down the joint to eliminate all unwanted movement. But biomechanics are rarely that simple.

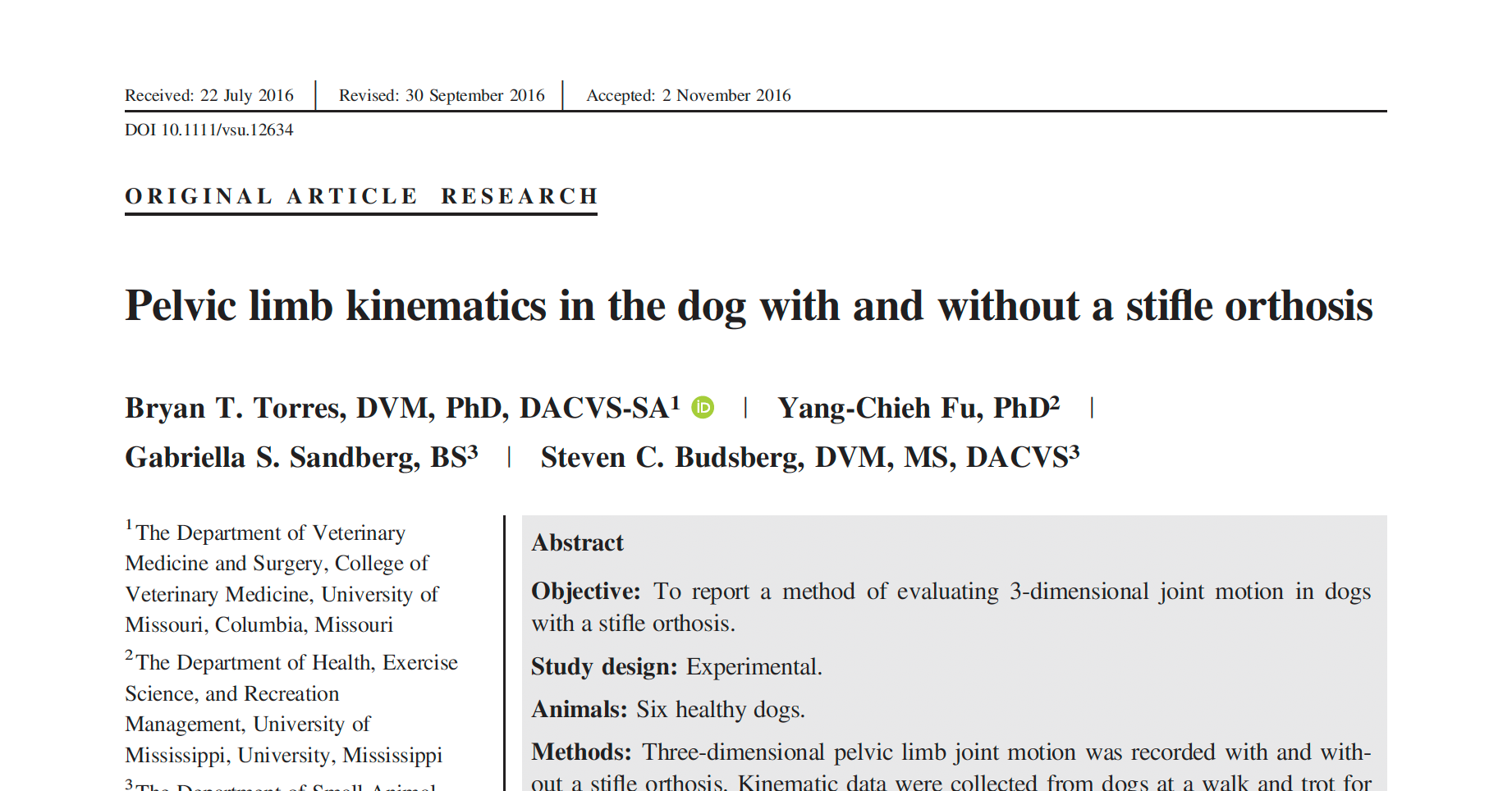

A landmark study titled "Pelvic limb kinematics in the dog with and without a stifle orthosis," authored by Dr. Bryan T. Torres and colleagues (published in Veterinary Surgery), used high-tech motion capture to evaluate joint movement in dogs wearing custom Hero Knee Braces. The data reveal that, while the most surface-level assumptions about bracing seem straightforward, it is actually a set of counterintuitive mechanical design tricks, understood by clinicians, that explain how a brace truly supports an injured knee.

Understanding the Goal: Motion Control vs. Motion Elimination

To understand how a brace works, it helps to separate what owners expect from how orthoses are actually designed to function:

• The Common Assumption: A brace should lock the joint in place, preventing movement so the dog can't hurt themselves.

• The Clinical Reality: A functional stifle brace is supposed to allow normal, active Range of Motion (ROM) so the dog can walk, run, and sit naturally. It shouldn't immobilize the knee. Instead, its job is to step in at one specific moment during the step: mid-stance to stop the “bad motion.”

When a dog puts weight on their leg during mid-stance, the angle of the shinbone (tibia) causes it to slide forward under the thighbone—a painful instability known as cranial thrust or cranial drawer. A successful brace allows normal bending and straightening through most of the step, but selectively limits this harmful sliding motion right at mid-stance.

Best Brace Design Parameters

[ Active Gait Cycle ] ──► Allows Normal Flexion/Extension (Preserves Function)

[ Mid-Stance Phase ]  ──► Restricts Cranial Thrust / Drawer (Targeted Stability)

The Surface Conclusion vs. The Counterintuitive Mechanism

When evaluating the study data, several key findings challenge basic assumptions and highlight how a stifle brace functions on a deeper level:

1. The Stifle Joint Maintains Active Range of Motion

• The Surface Takeaway: Looking at the rigid frame of a Hero Knee Brace, one might worry that it will make the dog's leg stiff and uncomfortable.

• The Counterintuitive Insight: The study demonstrated that the brace barely limits the active Range of Motion at the stifle joint.

  • Walk: Natural knee ROM was 43.1°, while the braced knee maintained 49.1°.

  • Trot: Natural knee ROM was 57.2°, while the braced knee maintained 54.3°.

• Why this matters: Because soft tissue and skin naturally cushion the brace, the knee moves a bit differently than the brace. How the brace moves isn’t as important as what it causes the body's joints to do differently. Fortunately, the data showed a distinct shift in stifle joint position specifically during the stance phase (when thrust would occur). While this study was conducted on healthy dogs—meaning true cranial drawer wasn't present to measure directly—this specific positional shift at mid-stance strongly suggests that the brace is engaging precisely when it needs to, potentially dampening drawer motion without locking up the knee.

2. How Ankle (Hock) Restriction Actually Protects the Knee

• The Surface Takeaway: The study found that the lower ankle joint (tarsus/hock) showed reduced movement while wearing the brace. At first glance, restricting a completely healthy adjacent joint seems like an unwanted side effect.

• The Counterintuitive Insight: Most of the hock’s range of motion is actually preserved, but the mild restriction imposed on the ankle plays a key biomechanical role in protecting the knee.

• The "Ground Reaction" Effect: By stabilizing and slightly limiting movement at the hock, the orthosis leverages Ground Reaction Force (GRF)—the upward force exerted by the ground when the paw strikes. Instead of letting that energy collapse the ankle, the rigid brace directs that force upward, pushing backward against the front of the proximal tibia.

• The Human Connection: This exact principle is used in human medicine through Ground Reaction Ankle-Foot Orthoses (GRAFOs). In humans, a GRAFO uses the floor's force at the ankle to push the tibia back, preventing knee collapse and stabilizing the joint during stance. In dogs, harnessing this same force helps actively counteract forward tibial thrust at the knee.

Comparing Joint Motion Dynamics

What This Means for Dog Owners

Understanding these counterintuitive mechanics helps set realistic, evidence-based expectations for custom bracing:

• Functional Freedom: You don't have to worry about a custom brace like the Hero Knee Brace turning your dog's leg into a rigid post. It allows them to bend, sit, and walk naturally while intervening primarily during the weight-bearing phase of gait.

• Whole-Leg Engineering: The brace doesn't work on the knee in isolation. By controlling the ankle, it uses basic physics to apply a stabilizing, backward pressure on the shinbone right when weight is applied.

• Promising Preliminary Evidence: While additional scientific testing on dogs with active CCL tears is needed to explicitly measure drawer reduction, the stance-phase shifts captured in this study offer strong evidence that stifle orthoses provide targeted mechanical support right where it counts.

Read the full study here.
